PARALLEL PLATE ELECTROLYZERS

ELECTROLYSER FOR ON-SITE SODIUM HYPOCHLORITE (CHLORINE) BLEACH PRODUCTION USING COMMON SALT + WATER OR SEAWATER AND POWER.

FOR BRINE + WATER TO SODIUM HYPOCHLORITE PRODUCTION, PLATE ELECTROLYZERS

FOR SEAWATER TO SODIUM HYPOCHLORITE PRODUCTION, PLATE ELECTROLYZERS

HORIZONTAL ELECTROLYSER
VERTICAL ELECTROLYSER

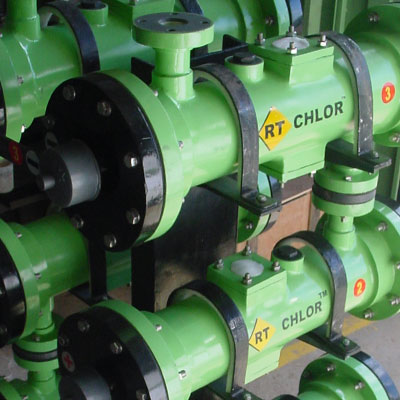

ELECTROLYSER WITH SIGHT GLASS
TRANSPRENT ELECTROLYZER


  • KLOROGEN, HORIZONTALclick ↑ to refer models
  • KLOROGEN, VERTICALclick ↑ to refer models
  • KLOROGEN-S, HORIZONTALclick ↑ to refer models
  • KLOROGEN-S, VERTICALclick ↑ to refer models

KLOROGEN HORIZONTAL ELECTROLYSER MODELS


CAPACITY Kg/hr MODEL FLANGE STD
STD WITHOUT SIGHT GLASS TRANSPARENT TYPE ANSI B16.5 #150
1.0 KLOROGEN-HB1K KLOROGEN-HB1KT
2.0 KLOROGEN-HB2K KLOROGEN-HB2KT
3.0 KLOROGEN-HB3K KLOROGEN-HB3KT
5.0 KLOROGEN-HB5K KLOROGEN-HB5KT
6.0 KLOROGEN-HB6K KLOROGEN-HB6KT
RT CHLOR-S SEAWATER-BASED HYPOCHLORITE SYSTEM MONTED ON A SKID

TYPICAL ELECTROLYSER MODEL

KLOROGEN ELECTROYZER.
1. N0ZZLE 2.PARALLEL PLATE ASSEMBLY 3.ELECTROLYSER HOUSING


KLOROGEN ELECTROLYERS RANGE

15g - 500 Kg/day

APPLICATIONS

  • Industrial Water Treatment
  • Oil& Gas, Oil Refineries
  • Desalination facilities
  • Cooling / Process Water Treatment
  • Petrochemical Water Treatment
  • Mining Process Water Treatment
  • Drinking Water chlorination
  • Municipal / Corporation / Water Boards
  • Swimming pool

KLOROGEN® SERIES ELECTROLYZER



Parallel plate Electrolyzers & Replacement Spares

TiTaN®, Since 1981, with unrivalled range of electrochemical solutions which have been evolved based on its past experience & requirements by serving various electrochemical industries with comprehensive line of exceptionally efficient products including electrodes, electrolyzers & electrochlorination systems, offers the state of art KLOROGEN® SERIES parallel plate electrochemical hypochlorite generation cells / electrolyzer / electrochlorinator, an innovative technology for onsite generation of hypochlorite.

TiTaN®'s parallel plate electrolyzers are manufactured and designed for effective use in both brine solution and seawater and are offered as : KLOROGEN® SERIES Parallel plate assembly, designed to meet the ever growing needs of synthetic brine chlorination requirements; KLOROGEN®-S SERIES plate-assembly cells, designed for seawater based processes to prevent marine & bio-fouling at power plants, desalination plants, LNG terminals, coastal process industries...

KLOROGEN® / KLOROGEN®-S SERIES hypochlorite generators (electro chlorinator) converts natural brine (seawater) or artificial brine (common salt) into 1st grade sodium hypochlorite (HYPO-CHLORITE), by means of electrolysis process with the applied low voltage DC current. No chemicals other than ordinary salt are used throughout the process. The instant production of Hypochlorite solution at-site can be stored or utilized for water treatment and disinfection purposes and eliminates the storage and handling of bulk hazardous chemicals..
