SKID BASED BRINE CHLORINATION SYSTEMS

BRINE SYSTEMS FOR CONTINUOUS SODIUM HYPOCHLORITE PRODUCTION
scroll down
SYSTEM RANGE
APPLICATIONS
SYSTEM BENEFITS
RT CHLOR SYSTEM
DOWNLOAD BROCHURE

------ WHAT YOU CAN BENEFIT FROM RT SERIES SYSTEMS ------

YOU CAN PRODUCE SODIUM HYPOCHLORITE
ON-SITE AND ON DEMAND AND DISINFECT USING THIS SYSTEMS

&

AVOID HANDLING TOXIC CHLORINE

With Safe, Effective and Healthy Disinfection System

Which is Easy to Handle And Operate

and the Compact Modular Design Requires Less Space

RT CHLOR Standard Models

MODELSEquivalent Chlorine Output Soft water for Brine Preparation 1ppm 2ppm 3ppm 4ppm 5ppm AC amps @415V, 3Ph, 50Hz Main Feeder Capacity
Kg/day Liters/hr M3/day Volume of water that can be disinfected Million Liters Per Day (MLD) Amps Amps
RTCHLOR-BCT-500G 12.0 62.5 2.0 12 6 4 3 2 5 7.5
RTCHLOR-BCT-1K 24.0 125.0 3.0 24 12 8 6 5 10 14.5
RTCHLOR-BCT-1.5K 36.0 187.5 5.0 36 18 12 9 7 14 21.0
RTCHLOR-BCT-2K 48.0 250.0 6.0 48 24 16 12 10 19 21.0
RTCHLOR-BCT-3K 72.0 375.0 9.0 72 36 24 18 14 29 35.0
RTCHLOR-BCT-6K 144.0 750.0 20.0 144 72 48 36 29 58 68.0
RT CHLOR BRINE-BASED HYPOCHLORITE SYSTEM MONTED ON A SKID

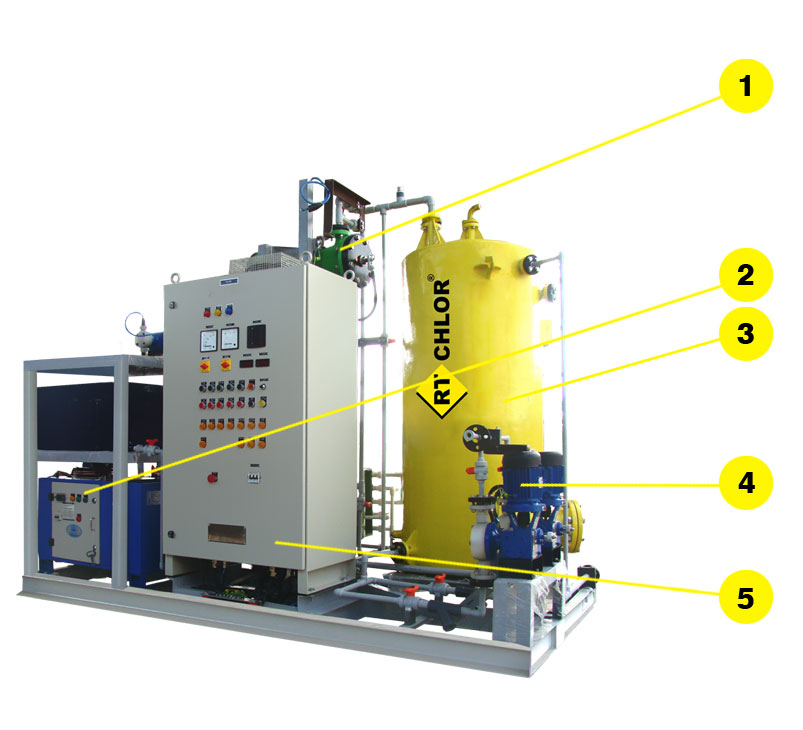

TYPICAL HYPOCHLORITE SKID

RT CHLOR BRINE-BASED HYPOCHLORITE SYSTEM MOUNTED ON A SKID.
1. BRINE ELECTROLYSER 2.CHILLER UNIT 3.HYPOCHLORITE TANK 4.HYPO DOSING PUMPS 5.CONTROL PANEL

BRINE SYSTEMS RANGE FROM

12 Kg - 144 Kg/day

DOWNLOAD BROCHURE

APPLICATIONS

  • chemicals & fertilizer industry disinfect water
  • petrochemicals, mining & refineries water
  • cement plant, steel plant,sugar & bottling plants
  • textile,tanneries, pulp & paper industries
  • power generation & power utilities water
  • Pharmaceutical industry water disinfection

RT CHLOR® BRINE SYSTEM

SYSTEM DESIGN FOR HIGH CAPACITY HYPOCHLORITE PRODUCTION FROM BRINE SOLUTION. ( PRE ASSEMBLED SKID MOUNTED SYSTEMS ENGINEERING, MANUFACTURING & ONSITE SODIUM HYPOCHLORITE PLANT ERECTION SERVICES).

Skid based continuous System consists of all equipment mounted on a single compact skid conductive for easy installation and operation. It can be transported on a single truck and can be containerized, if desired. Systems can be made fully operational and generating hypochlorite within 24 hours of receiving the required inputs at the battery limit.
